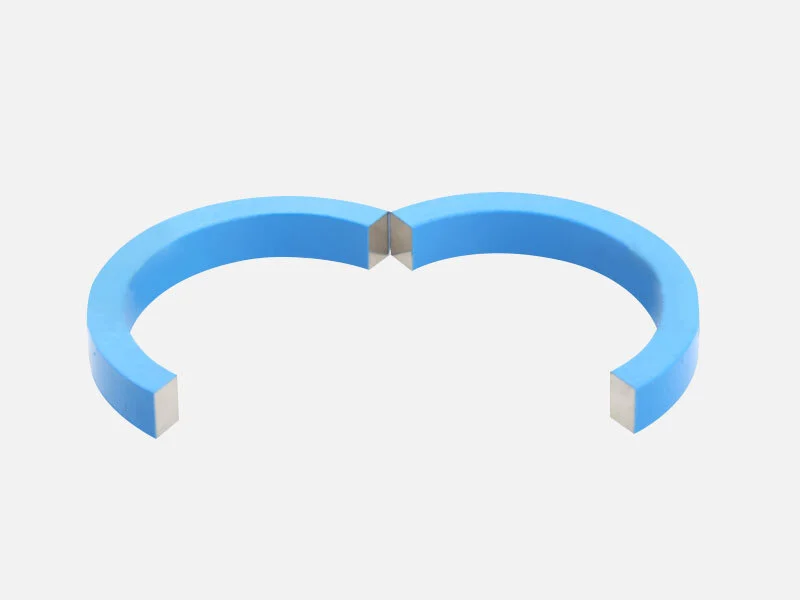

Toroidal Split Cut Core Split Current Transformer Core
The Toroidal Split Core is widely used in split current transformer, current sensor and etc. It’s ideal material for replacing split silicon steel core and split permalloy core.
■ The permeability is 10 times higher than split silicon steel core.
■ The core loss is 1/3 less than split silicon steel core.
■ The price is 50% lower than split permalloy core.
Application
■ Split Current Transformer
■ Current Sensor
■ Power Inductor or Transformer
Product Characteristics
• After nano cutting, the permeability can reach to ≥6000. The precision will be improved by one level.
• Core loss(16KHz/37mT) is 1/2 less than amorphous core, and 1/6 less than silicon steel core.
• Excellent degree of linearity, 20% better than split silicon steel core.
EXPERIENCE WITH
Compare With Silicon Steel
